Product Details
  • Place of Origin:  guangdong
  • Brand Name:  kunneng
  • Model Number:  KN010P

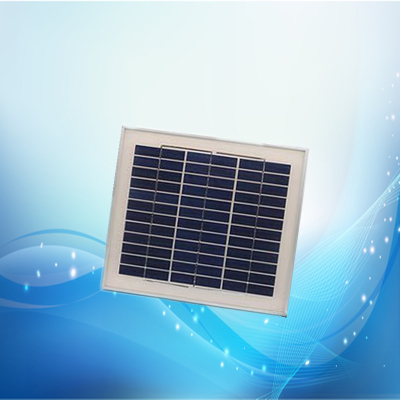

10w poly panel

Model No:KN010P
Spec:10w poly panel
Carton Size:340*285*15mm

Model Name: 10W poly panel

Model No.: KN010P

1)Use high quality solar cells to advanced encapsulation
2)Adopt high transparent low-iron tempered glass, high quality anti-UV EVA and back sheet.
3) With multi-ply performance testing for each module, to ensure the product quality and output performance.
4)Using anodization aluminum frame with anticorrosion, to ensure solar module working under extremely and badly outdoors environment

Electrical Characteristics:

Model No.:KN010P
Max-power: Pm(W)10W
Max-power voltage: Vm(V)18.1V
Max-power current: Im(A)0.55A
Open-circuit voltage:Voc(V)21.8v
Short-circuit current: Isc(A)0.60A
Max-system voltage:(VDC)600V
Operating temperature(℃)-40℃~ 85℃
Power tolerance:0~ 6%

                                               *STC condition:1000 W/m2,1.5AM and 25℃ cell temperature.

Mechanical characteristics

Type of solar cellpolycrystalline
Lay up of solar cell36 (2*18)PCS
Dimension of solar module340*285*15mm
Gross weight of solar module 1.1Kgs
Front CoverLow-iron Tempered glass/ 3.2mm
FrameAnodization aluminum
Junction box( protection degree)IP65
Hailstone Impact25mm at 23m/s

Guarantee the workmanship for 5 years, 90% power output  for 10 years, and 80% power output for 25 years.

1) Independent power supply for remote area,i.e. house lighting etc.
2) Solar power system
3) Solar lighting,i.e.solar garden lamp,solar lawn lamp etc.
4) Other samll solar power supply

  • Place of Origin:  guangdong
  • Brand Name:  kunneng
  • Model Number:  KN010P
